Essential Replacement Spare Parts for Foundation & Rotary Drilling Machinery

In heavy foundation engineering and rotary drilling operations, machinery downtime translates directly to costly project delays. Maintaining the peak operational efficiency of deep foundation equipment—such as rotary drilling rigs, diaphragm wall trench cutters, and Kelly bars—requires reliable, precision-engineered replacement parts built to withstand intense abrasion, extreme hydraulic pressure, and high structural force.

Whether you are performing routine maintenance on hydraulic systems or replacing worn-out mechanical components on drilling tools, sourcing high-durability replacement spare parts ensures continuous productivity on job sites.

Below is an overview of essential high-demand replacement parts, including specific OEM cross-reference part numbers widely utilized in foundation drilling machinery.

Core Replacement Spare Parts Reference Guide

To streamline your procurement and maintenance scheduling, explore our comprehensive cross-reference list of precision replacement components engineered for foundation drilling platforms:

1. Hydraulic Seals & Filtration Elements

Maintaining hydraulic fluid cleanliness and preventing leaks are critical for protecting expensive hydraulic main pumps and valve assemblies.

• Part No. 259834 (O-Ring Seal): Precision-engineered elastomeric static seal designed for high-pressure hydraulic block connections and motor interfaces, preventing fluid leakage under intense vibration.

• Part No. 406800 (Hydraulic Return/Inlet Filter Element): High-efficiency filtration media engineered to remove micro-particulates from hydraulic oil, ensuring continuous system protection.

• Part No. 215881 (Hydraulic Suction Filter Element): Heavy-duty inlet filtration unit designed to capture contaminants before oil enters primary hydraulic pumps.

• Part No. 312405 (Engine Oil Filter Element): Premium filtration unit designed for diesel engine lubrication systems operating under heavy-load construction environments.

• Part No. 358912 (Fuel-Water Separator Filter): High-capacity fuel system filter engineered to protect diesel injectors from moisture and solid particulates.

2. Kelly Bar & Structural Wear Components

Kelly bars and mast guide frames endure heavy friction during drilling operations. Utilizing premium wear-resistant alloys and composite strips extends the service life of major structural assets.

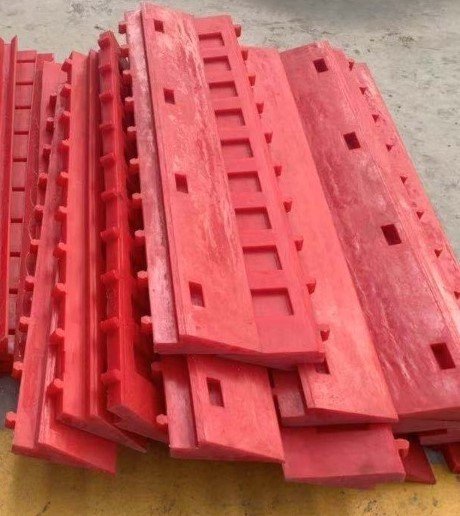

• Part No. 218097.97665 (Wear Strip / Slide Guide Bar): Heavy-duty guide strip installed along Kelly bar keys and sliding frames to minimize metal-on-metal friction during telescoping actions. (Note: Suffix .97665 specifies reinforced material composite and dimensional tolerance).

• Part No. 224510 (Kelly Guide Bushing / Nylon Wear Block): High-density composite sliding block engineered to absorb lateral vibrations and guide the Kelly bar smoothly within the drive sleeve.

3. Structural Connecting Pins & Fasteners

Rigid structural connections demand high-tensile steel pins designed to withstand massive rotational torque and cyclic loading.

• Part No. 259680 (Main Connecting Pin): Heat-treated alloy steel pin utilized for locking rotary drive components, drilling buckets, and extension adapters.

• Part No. 259681 (Locking Safety Pin / Spring Retainer): Essential safety retention pin paired with Part No. 259680 to prevent accidental dislodgement during high-rpm or heavy-vibration drilling cycles.

• Part No. 289102 (Kelly Drive Stub Pin): Reinforced torque-transmission pin for rotary drive couplings and stub adapters.

4. Cutting Tools & Wear Teeth

Ground engaging tools (GET) require extreme hardfacing and tungsten carbide reinforcement to penetrate hard rock and abrasive soil strata.

• Part No. 278618 (Cutting Tooth / Weld-on Tooth): Forged, wear-resistant cutter tooth designed for drilling bucket bottoms, core barrels, and trench cutting tools working in sandstone and cobble formations.

• Part No. 189230 (Heavy-Duty Bullet Tooth / Shank Tooth): Tungsten-carbide tipped cutting tooth suitable for rock augers and heavy foundation tooling.

Why Source Precision-Engineered Replacement Parts?

Choosing high-grade replacement components manufactured to exact dimensional tolerances provides key operational advantages:

1. Extended Equipment Life: High-alloy steels and premium synthetic rubbers prevent premature wear on mating components.

2. Reduced Field Downtime: Exact-fit dimensions ensure fast installation during field servicing, getting your drilling rig back online rapidly.

3. Cost-Effective Fleet Management: Sourcing premium aftermarket replacement parts optimizes maintenance budgets without compromising mechanical integrity or safety.

Need Cross-Reference Support or Global Shipping?

Finding the exact part number for your specific machine model or job site requirement can be challenging. Our technical team is ready to assist you in verifying part dimensions, material grades, and international shipping options.

Contact us today with your required part numbers (such as 259834, 218097.97665, 406800, 259680, 259681, 278618) to request a competitive quote and technical specification datasheet.

Disclaimer & Trademark Notice

All manufacturer names, symbols, descriptions, and OEM part numbers listed herein (including but not limited to BAUER, BAUER Maschinen GmbH, and related product designations) are used strictly for identification and cross-reference purposes only. It is not implied that any part listed is a direct product of BAUER Maschinen GmbH unless explicitly stated. All trademarks, registered trademarks, and brand names belong to their respective owners.

Product Cross-Reference & Technical Specifications

Refer to the structured quick-reference table below for exact part numbers, descriptions, and equipment application modules:
