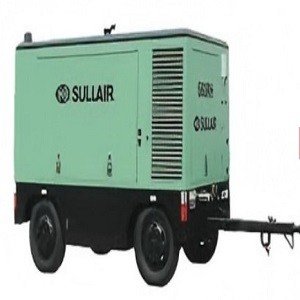

DWW Series Rig Air Compressor

Category：Air Compressors
INQUIRY EMAIL

Product Description:

DWW Series Rig Air Compressor

Product Overview

Rig air compressors are the core air supply equipment for all drilling operations, supporting drill pipe handling, BOP control, pneumatic tools and cementing work. Our DWW series drilling air compressors are developed with 35 years oilfield experience, applied in over 1,200 drilling sites across 32 countries.

All units pass strict factory test, conform to API 11P, ISO 8573-1 (Class 1-4-1 air quality) and CE standards, available in air-cooled & water-cooled, fixed speed & VSD, standard & explosion-proof versions for desert, plateau, offshore and H2S sour wells.

Core Advantages

Stellite alloy valve plates with HVOF coating, 3 times longer service life, MTBF up to 22,000 hours, 57% higher than industry average
Adaptive cooling + marine anti-corrosion design, wide operating temperature -25℃~85℃, IP66/IP67 protection for offshore salt spray
Ultra-low oil carryover ≤1 ppm, cut maintenance cost by 30%; global warehouse support 24–72h spare parts delivery
VSD energy saving option, redundant cooling system, remote SCADA monitoring, DNV GL & NACE certified for deepwater sour service

Complete Model Parameter Table

Model	Motor Power	Rated Displacement	Working Pressure	Cooling Type	Tank Capacity	Enclosure Grade	Weight	Temp Range	Main Application
DWW-55	55kW(75HP)	10.2m³/min	1.0MPa	Air-cooled	500L	IP54	1850kg	-25℃~45℃	Shallow well, workover rig, portable drilling
DWW-90	90kW(120HP)	16.8m³/min	1.2MPa	Air-cooled	800L	IP55	3200kg	-30℃~50℃	Medium onshore oil & gas drilling
DWW-110	110kW(150HP)	20.5m³/min	1.6MPa	Air-cooled	1000L	IP55(IP65 optional)	4100kg	-30℃~55℃	Deep onshore well, sour gas field, BOP control
DWW-132W	132kW(180HP)	24.8m³/min	1.2MPa	Water-cooled	1200L	IP56	5800kg	-25℃~60℃	High temp desert, jack-up offshore rig
DWW-160W	160kW(215HP)	30.2m³/min	1.4MPa	Water-cooled	1500L	IP66	7200kg	-20℃~65℃	Semi-submersible offshore rig, well testing
DWW-200W	200kW(268HP)	37.8m³/min	1.6MPa	Water-cooled	2000L	IP66+NACE MR0175	9500kg	-15℃~70℃	Ultra-deep offshore, fracturing & cementing
DWW-250W	250kW(335HP)	47.5m³/min	1.2MPa	Water-cooled	2500L	IP66+ABS marine	12800kg	-10℃~75℃	Large offshore platform, well completion
DWW-315W	315kW(422HP)	59.8m³/min	2.0MPa	Water-cooled	3000L	IP67+NACE MR0175	16500kg	-5℃~80℃	Ultra-deep offshore, mining heavy drilling

Failure Solution & Technical Innovation

Wear-resistant valve assembly: Stellite alloy HVOF coated valve plate, extend valve service life greatly, reduce frequent replacement downtime
Anti-clog cooling system: Self-cleaning cooler fin, 316L stainless steel/titanium heat exchanger, avoid overheating in high dust & salt environment
Sour gas protection: NACE certified material & H2S resistant lubricant, optional ATEX Zone 2 explosion-proof motor
Predictive maintenance: Vibration, pressure & temperature real-time monitoring, early fault alarm

Matching Spare Parts & Compatible Brands

Component Category	Main Parts	Matching OEM Brands
Valves & Fittings	Stellite valve plate, valve seat, spring, HVOF valve	Atlas Copco, Ingersoll Rand, Sullair, Kaeser
Bearings & Rotating Parts	Ceramic bearing, tapered roller bearing, crankshaft	SKF, Timken, FAG, NSK
Cooling Parts	Heat exchanger, cooling pump, fan, thermostat	Siemens, ABB, Thermax, Trane
Filtration & Lubrication	Anti-H2S synthetic oil, oil separator, air filter	Donaldson, Mann+Hummel, Parker
Electrical Control	VSD drive, explosion-proof motor, sensor, control cabinet	ABB, Siemens, Rockwell, Schneider
Skid & Sealing Parts	Anti-corrosion skid, gasket, tank lining	NOV, Cameron, Garlock, Chesterton

Supply & Service

Certifications: API 11P, ISO 8573-1, NACE MR0175, CE, DNV GL, complete MTR & PMI material report
Support: 30+ professional engineers, on-site debugging, maintenance training, remote rig system monitoring
Customization: Displacement, pressure, protection grade, explosion-proof, marine dedicated design available
