Hook Block Assembly

Category：Hook Parts
INQUIRY EMAIL

Product Description:

Product Introduction

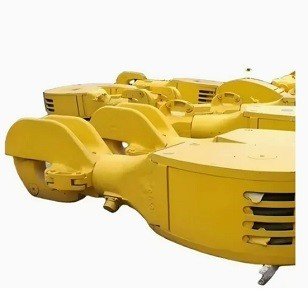

Hook Block Assembly

The TSS-TUP Hook Block Assembly is designed for heavy-duty drilling hoisting applications where safety, reliability, and long service life are essential. Manufactured in accordance with API specifications, our hook block assemblies combine the hook body, swivel mechanism, load-bearing frame, and safety locking system into a robust lifting solution for modern drilling rigs.

Built from high-strength forged alloy steel and precision-machined components, each assembly is engineered to withstand continuous dynamic loading, harsh drilling environments, and demanding offshore and onshore operations.

Available in multiple load capacities, TSS-TUP hook block assemblies are suitable for land drilling rigs, offshore platforms, workover units, geothermal drilling, mining exploration, and heavy lifting applications. OEM manufacturing and customized engineering solutions are also available.

Product Features

API-compliant hook block assembly
High-strength forged alloy steel construction
Heavy-duty integrated swivel system
Reliable safety latch mechanism
Precision bearing assembly
Optimized lubrication system
Wear-resistant pin and bushing design
Corrosion-resistant surface treatment
Suitable for demanding drilling environments
OEM manufacturing and customized solutions available

Technical Specifications

Item	Specification
Product Type	Hook Block Assembly
Standard	API 8C
Rated Load	900–2250 kN
Material	High-Strength Alloy Steel
Heat Treatment	Quenched & Tempered
Swivel Type	Heavy-Duty Rotary Assembly
Surface Protection	Anti-Corrosion Coating
Application	Drilling Hoisting System

Available Models

Model	Rated Load	Application
HB-90	900 kN	Workover & Service Rigs
HB-110	1100 kN	Water Well & Medium Drilling
HB-135	1350 kN	Land Drilling
HB-170	1700 kN	Deep Drilling
HB-225	2250 kN	Heavy-Duty & Offshore Drilling

Applications

Our hook block assemblies are widely used in:

Onshore Oil & Gas Drilling
Offshore Drilling Platforms
Deep Well Drilling
Workover Operations
Geothermal Drilling
Mining Exploration
Heavy Lifting Operations
Drilling Hoisting Systems
Casing Running Operations
Well Construction Projects

Why Choose TSS-TUP

TSS-TUP combines engineering expertise, precision manufacturing, and strict quality management to provide dependable hook block assemblies for demanding drilling applications.

Our advantages include:

High-strength forged construction
Precision machining and heat treatment
Durable swivel and bearing design
Reliable safety locking mechanism
Wear-resistant structural components
Corrosion-resistant surface protection
OEM replacement capability
Reverse engineering expertise
Comprehensive quality inspection
Fast global logistics
Professional engineering support

OEM & Custom Manufacturing

TSS-TUP provides complete OEM manufacturing services for hook block assemblies and hoisting equipment.

Our engineering capabilities include:

Reverse Engineering
Drawing-Based Manufacturing
Sample-Based Manufacturing
Precision Forging
CNC Machining
Heat Treatment
Customized Load Capacities
Replacement Component Manufacturing

We also manufacture compatible replacement components for legacy drilling equipment and discontinued models, helping customers extend equipment service life while reducing maintenance costs.

Quality Control

Every hook block assembly is manufactured under a strict quality management system.

Our quality procedures include:

Raw Material Inspection
Forging Inspection
Heat Treatment Verification
CNC Precision Machining
Dimensional Inspection
Magnetic Particle Inspection (MPI)
Load Testing
Final Assembly Inspection
Packing & Shipment Inspection

Each hook block assembly is thoroughly inspected before delivery to ensure reliable lifting performance and long-term operational safety.

FAQ

Frequently Asked Questions

What is a hook block assembly?

A hook block assembly is an integrated hoisting component combining the hook, swivel mechanism, and load-bearing structure used to safely lift and support drill strings during drilling operations.

What standards do your hook block assemblies comply with?

Our products are manufactured according to API specifications and customer project requirements.

What load capacities are available?

We supply hook block assemblies ranging from 900 kN to 2250 kN.

Can you manufacture according to customer drawings?

Yes. We provide OEM manufacturing based on technical drawings, samples, and project specifications.

Do you supply replacement hook block components?

Yes. We manufacture pins, bushings, bearings, swivel assemblies, latch mechanisms, wear plates, seal kits, and other replacement parts.

Can you support discontinued equipment?

Yes. Reverse engineering and replacement manufacturing are among our core capabilities.

What quality inspections are performed?

Each product undergoes material inspection, heat treatment verification, dimensional inspection, non-destructive testing, load testing, and final quality inspection before shipment.
