RM Series Rig Motor

Category：Rig Power System
INQUIRY EMAIL

Product Description:

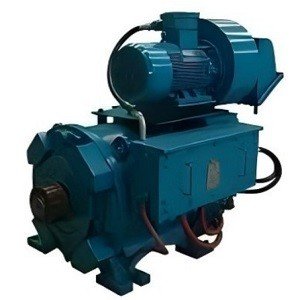

RM Series Rig Motor

Product Overview

Rig motors are core power equipment for drilling operations, driving drawworks, mud pumps and rotary tables under high temperature, heavy vibration, dust and corrosive working conditions.

Our RM series rig motors are developed with 30 years oilfield experience, deployed on over 900 drilling sites across 28 countries. All motors pass strict factory testing and meet API 7F, IEEE 841, IEC 60034, NACE MR0175 and DNV GL offshore standards with full component traceability.

Core Advantages

Ceramic composite winding insulation + gradient cooling technology, MTBF 42% higher than industry average
HVOF coated bearings and full anti-corrosion coating, stable operation in H2S sour gas and saltwater offshore environment
AC induction & permanent magnet two structures, PM type saves 15% energy consumption
Reduce maintenance cost up to 60% and downtime by 75%; global warehouses support 24–48h spare parts delivery
Multiple cooling & protection grades, customizable voltage, enclosure and cooling system for various harsh drilling scenes

Complete Model Parameter Table

Model	Power Rating	Speed(50/60Hz)	Voltage	Enclosure Grade	Frame Size	Weight	Cooling Type	Main Application
RM-180	180 HP (134 kW)	1500/1800 RPM	460V/575V 3-phase	IP55	404T	580 kg	TEFC	Shallow well, workover rig, light-duty drawwork & mud pump
RM-450	450 HP (335 kW)	1500/1800 RPM	460V/575V/2300V 3-phase	IP56	5016	1850 kg	TEFV	Medium-depth onshore oil & gas drilling, rotary table drive
RM-800	800 HP (597 kW)	1500/1800 RPM	2300V/4160V 3-phase	IP65	6306	4200 kg	TEAAC	Deep onshore well, high-pressure mud pump, sour gas field
RM-1200	1200 HP (895 kW)	1500/1800 RPM	4160V/6900V 3-phase	IP66 + Marine Anti-Corrosion	7108	7800 kg	TEACC	Ultra-deep well, jack-up & semi-submersible offshore rig, heavy-duty drawworks

Failure Solution & Technical Innovation

Ceramic composite insulation (patented): 3 times dust & moisture resistance, stable insulation resistance under long-term harsh environment
Gradient variable-speed cooling system: Auto adjust airflow by winding temperature, cut cooling energy consumption by 22% and lower winding temperature greatly
HVOF reinforced bearing & NACE certified anti-corrosion structure: Avoid bearing seizure and sulfide corrosion in sour wells
Redundant cooling design for offshore PM motors: Prevent overheating failure caused by temperature fluctuation; encapsulated NdFeB magnet to avoid demagnetization under heavy load

Supporting Products & Spare Parts

Complete Units

New RM series motors: AC induction / permanent magnet types, customizable voltage, protection grade, cooling system
Remanufactured motors: Full disassembly overhaul, replace bearings, seals and insulation, pass 110% load test

Spare Parts List

Component Category	Main Spare Parts
Bearings	Tapered roller bearings, deep groove ball bearings, HVOF coated bearing races
Stator & Insulation	Ceramic composite insulation kits, stator windings, temperature thermistors
Sealing Parts	Oil seals, V-rings, anti-corrosion gaskets
Cooling Components	Variable speed cooling fans, coolant pumps, heat exchangers
PM Rotor Parts	NdFeB magnet assemblies, high temperature epoxy encapsulation kits, rotor shafts

Quality & Global Service

Certifications: API 7F, IEEE 841, IEC 60034, NACE MR0175, DNV GL, ABS marine certification, complete MTR material test reports
Global Supply Chain: Overseas stock points support fast spare parts delivery within 24–48 hours
Customization & Technical Support: Professional engineers provide motor parameter customization, on-site commissioning and remote operation monitoring service
