Product Introduction

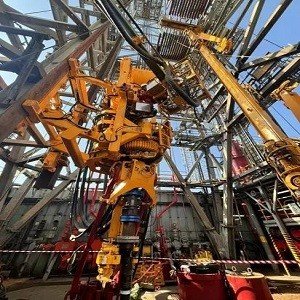

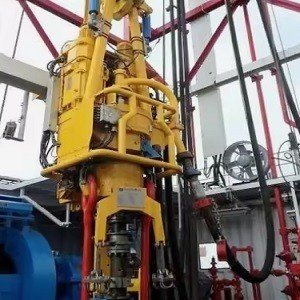

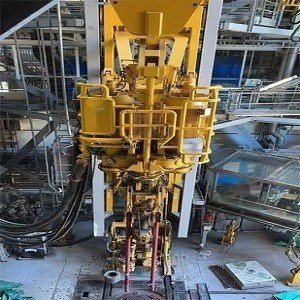

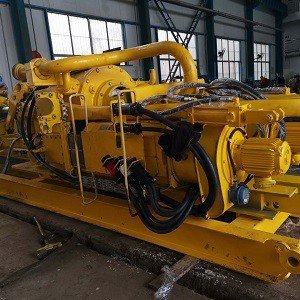

Top Drive System

The TSS-TUP Top Drive System is engineered to deliver reliable rotary power, high torque transmission, and precise drilling control for modern oil and gas drilling operations.

Designed for both land and offshore drilling rigs, our top drive systems integrate advanced mechanical, hydraulic, and electrical technologies to improve drilling efficiency, reduce connection time, and enhance operational safety.

Available in multiple torque capacities, TSS-TUP top drive systems are suitable for conventional drilling, directional drilling, deep wells, and high-pressure/high-temperature (HPHT) applications. Every unit is manufactured with high-strength alloy materials, precision-machined transmission components, and optimized cooling systems to ensure long service life under demanding drilling conditions.

Whether supplying complete top drive systems or replacement components, TSS-TUP provides engineering support, OEM manufacturing, and global logistics services for customers worldwide.

Product Features

• High torque transmission for demanding drilling operations
• Precision gear transmission for long service life
• Advanced cooling system for stable continuous operation
• Heavy-duty main shaft and quill assembly
• Reliable IBOP well control protection
• High-strength alloy steel construction
• Optimized hydraulic and electrical integration
• Suitable for land and offshore drilling rigs
• Easy maintenance and modular component design
• OEM manufacturing and customized engineering solutions

Technical Specifications

Item	Specification
Product Type	Top Drive System
Continuous Torque	40–90 kN·m
Maximum Torque	Up to 150 kN·m
Drive Type	Electric / Hydraulic
Cooling System	Air / Oil / Water Cooling
Brake System	Hydraulic Disc Brake
Working Environment	Onshore & Offshore
Standard	API 7K
Application	Oil & Gas Drilling

Available Models

Model	Continuous Torque	Maximum Torque	Application
TD-40	40 kN·m	60 kN·m	Workover & Light Drilling
TD-50	50 kN·m	80 kN·m	Conventional Land Drilling
TD-70E	70 kN·m	110 kN·m	Electric Top Drive
TD-70H	70 kN·m	120 kN·m	Heavy-Duty Drilling
TD-90	90 kN·m	150 kN·m	Deep & HPHT Drilling

Applications

Our top drive systems are widely used in:

• Onshore Oil & Gas Drilling
• Offshore Drilling Platforms
• Deep Well Drilling
• Directional Drilling
• Horizontal Drilling
• HPHT Wells
• Workover Operations
• Geothermal Drilling
• Mining Exploration
• Heavy-Duty Drilling Projects

---

Why Choose TSS-TUP

Why Choose TSS-TUP

TSS-TUP combines engineering expertise, precision manufacturing, and strict quality management to provide dependable top drive systems for challenging drilling environments.

Our advantages include:

• High-efficiency transmission system
• Precision-machined gear assemblies
• Wear-resistant alloy components
• Optimized cooling technology
• Reliable sealing performance
• OEM replacement capability
• Reverse engineering expertise
• Comprehensive quality inspection
• Global logistics support
• Professional technical service

OEM & Custom Manufacturing

TSS-TUP provides complete OEM manufacturing services for top drive systems and replacement components.

Our engineering capabilities include:

• Reverse Engineering
• Drawing-Based Manufacturing
• Sample-Based Manufacturing
• Precision Gear Machining
• Shaft & Quill Manufacturing
• Hydraulic Component Production
• Structural Component Fabrication
• Customized Top Drive Solutions

We also manufacture replacement components for discontinued equipment and legacy drilling systems, helping customers extend equipment service life while reducing maintenance costs.

---

Quality Control

Every top drive system is manufactured and inspected through a strict quality control process.

Our quality procedures include:

• Raw Material Inspection
• Forging Inspection
• Precision CNC Machining
• Gear Accuracy Inspection
• Heat Treatment Verification
• Dynamic Balance Testing
• Hydraulic System Testing
• Electrical Function Testing
• Final Assembly Inspection
• Packing & Shipment Inspection

Every unit is tested before delivery to ensure reliable performance and compliance with customer requirements.

---

FAQ

Frequently Asked Questions

What is a top drive system?

A top drive system is a drilling device that rotates the drill string from the top, improving drilling efficiency, safety, and operational flexibility.

What drilling applications are suitable for your top drive systems?

Our systems are suitable for land drilling, offshore drilling, directional drilling, deep wells, and HPHT applications.

Do you manufacture complete top drive systems?

Yes. We manufacture complete top drive systems as well as replacement components.

Can you manufacture according to customer drawings?

Yes. We provide OEM manufacturing based on drawings, samples, and technical specifications.

Do you support replacement parts for discontinued equipment?

Yes. Reverse engineering and legacy equipment support are among our core capabilities.

What quality standards do your products follow?

Our products are manufactured under strict quality management systems and can be supplied according to applicable customer specifications and API-related requirements where applicable.

Do you provide worldwide delivery?

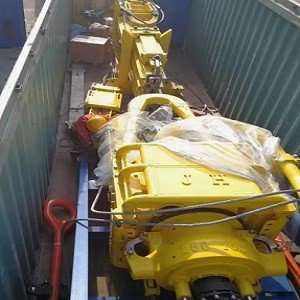

Yes. We export top drive systems and spare parts to customers worldwide.

Can customized configurations be provided?

Yes. Torque capacity, control systems, cooling methods, and structural configurations can all be customized according to project requirements.

---

Request a Quote

Looking for reliable top drive systems or customized drilling equipment solutions?

Contact TSS-TUP today for technical consultation, competitive pricing, OEM manufacturing, and fast global delivery.
